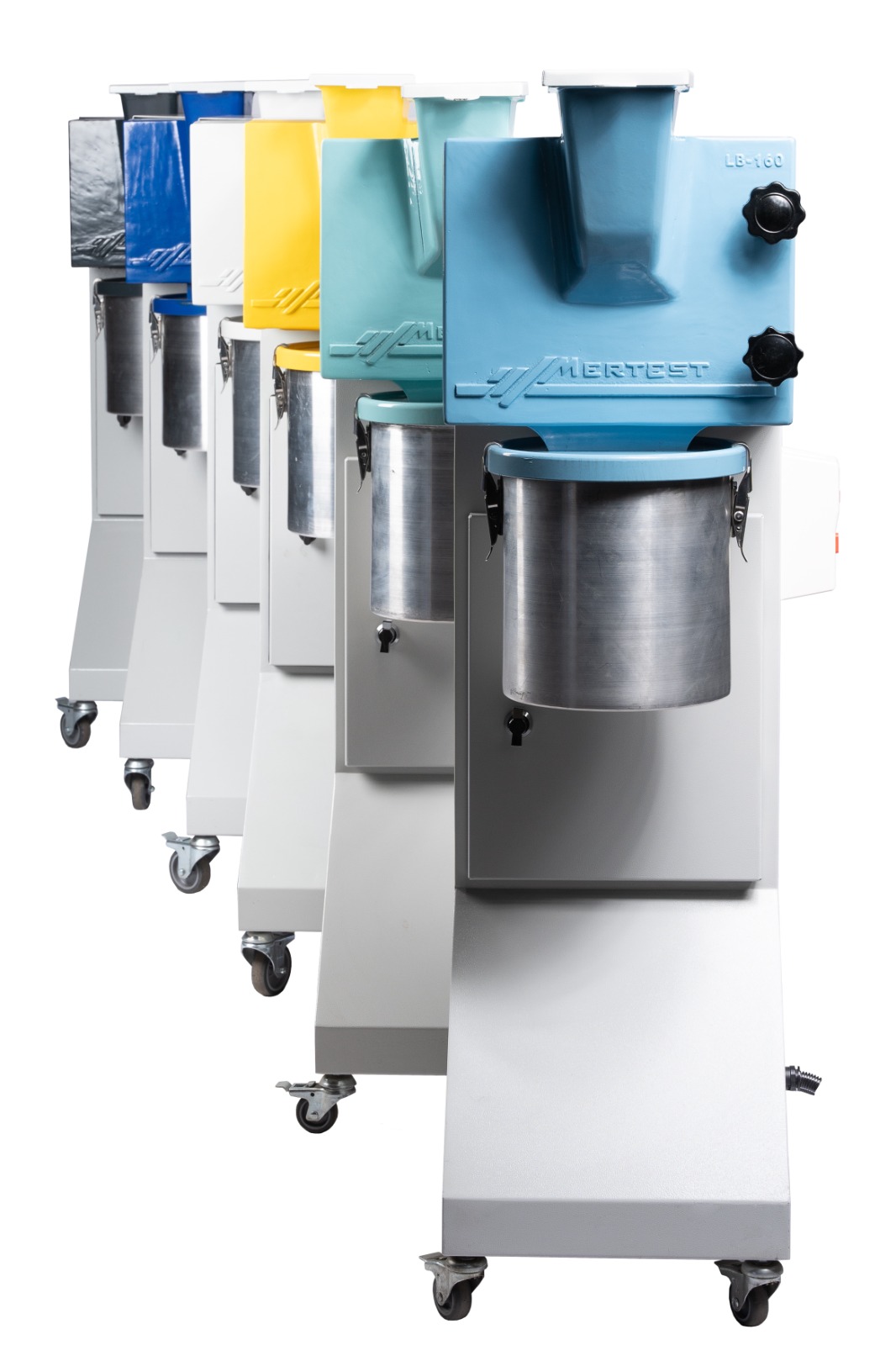

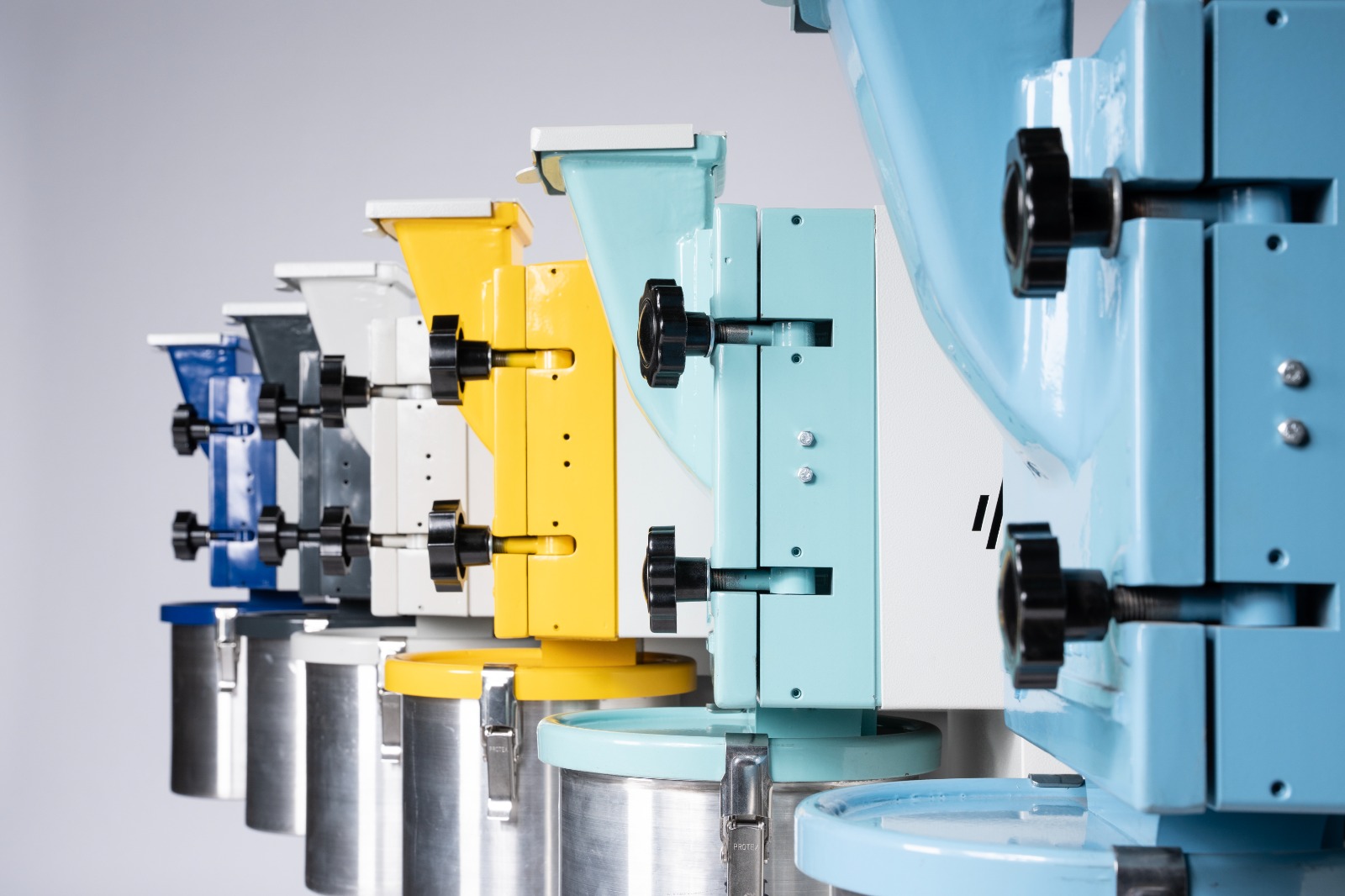

LB 160 Laboratory Type Knife Mill

LB 160 Laboratory Type Knife Mill Features

Designed to accelerate sample preparation processes in industrial laboratories, the LB 160 stands out with its compact structure and continuous feeding feature. Used in various sectors such as mining, chemicals, and food, this device ensures the uninterrupted processing of fed material into the final product.

Technical Specifications

Model	LB 600
Type	Knife Mill - Cross Beater Mill (Cross Rotor Grinder)
Housing / Body	Monoblock Cast Iron Housing
Liner Plates	Mn-Cr Alloyed High-Strength Steel Casting
Motor Power	2.2 kW - 380V - 50 Hz (220V Optional)

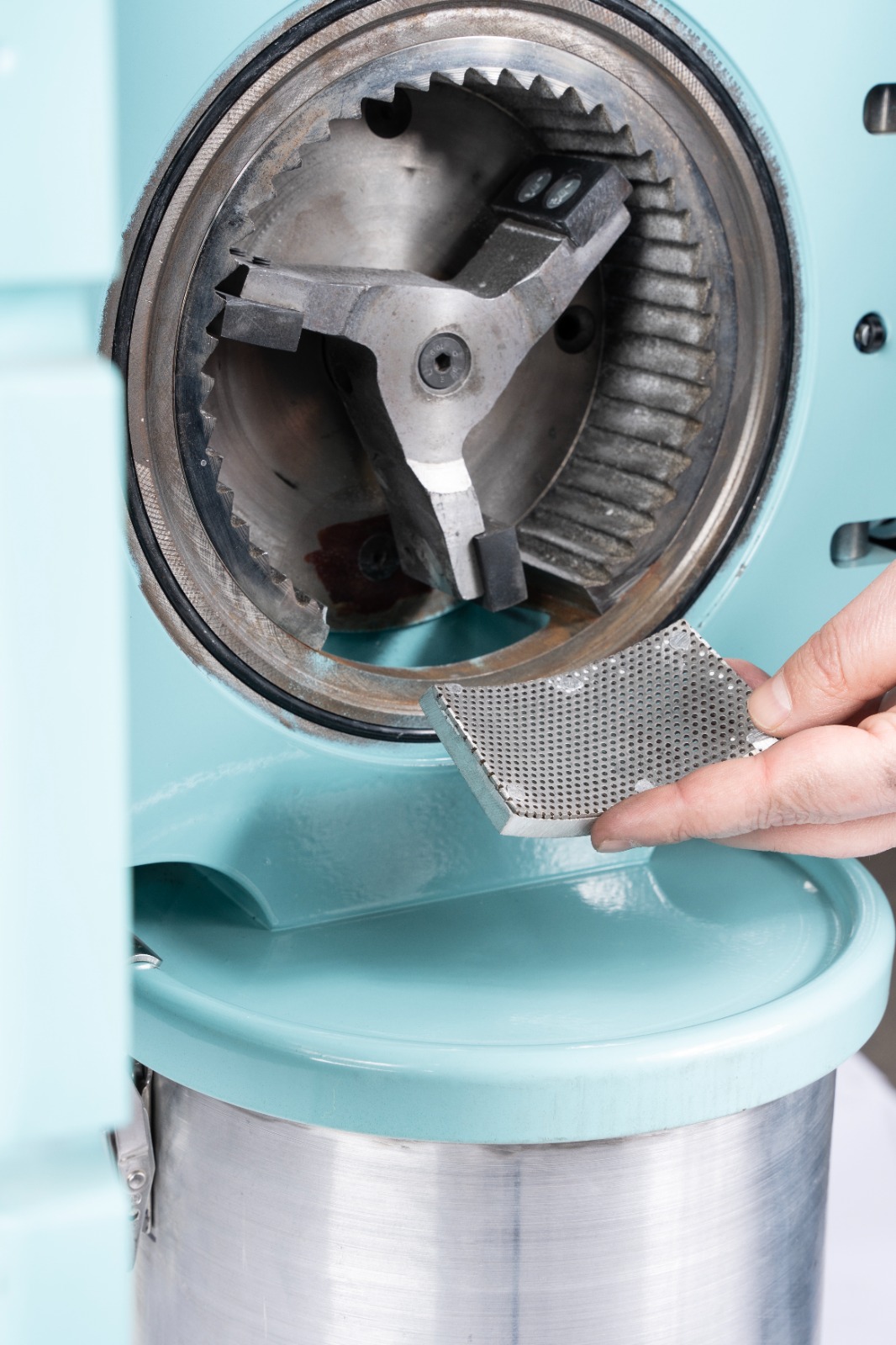

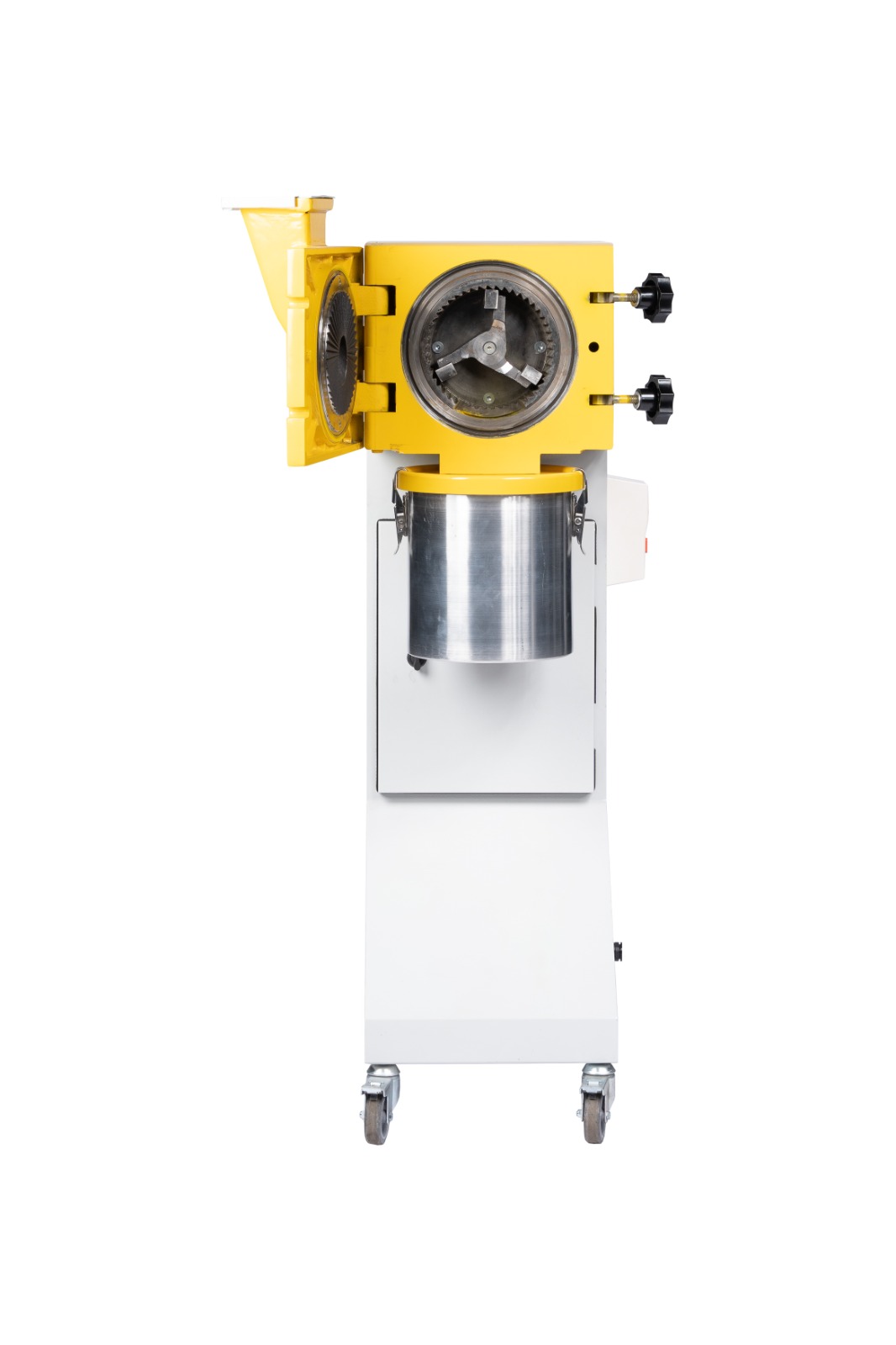

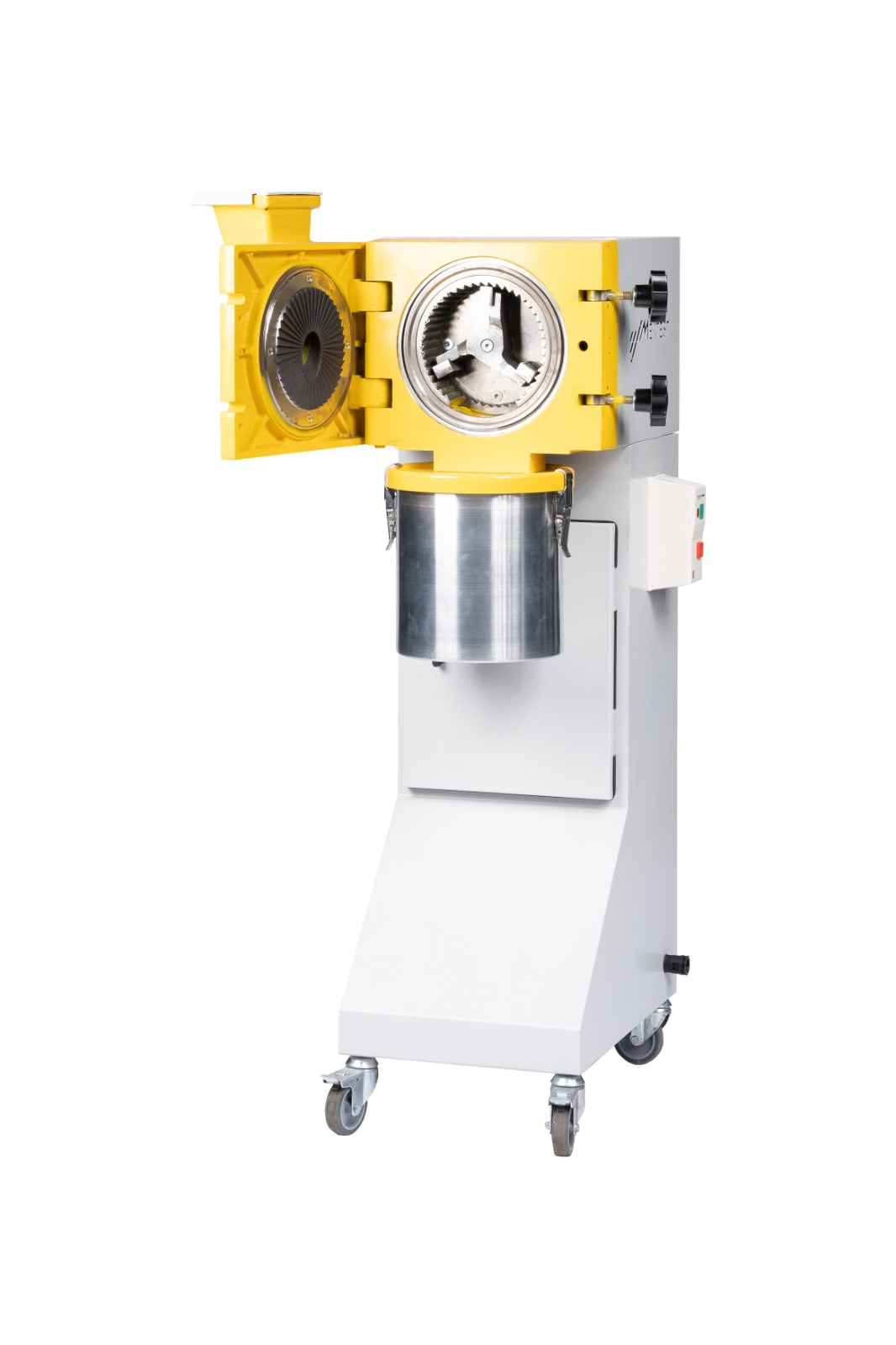

Application and Operational Principle: The LB 160 is a high-performance micronizing mill utilized across mining, chemical, glass, fertilizer, food, and pharmaceutical laboratories. Engineered with a compact design, it operates on a continuous feed and continuous discharge principle, ensuring rapid and efficient results. The system is capable of processing various materials with a maximum feed size of 30 mm. For metallic minerals with a hardness of up to 9 Mohs, ultra-fine particle sizes (e.g., -100 microns) can be achieved through a gradual grinding process. The final product size is easily adjusted via interchangeable cartridge sieves.

Grinding Performance and Material Specifications: The unit provides versatile output options, including 0-100 μm, 0-250 μm, 0-500 μm, 0-800 μm, 0-1 mm, and 0-2 mm. Ground material is efficiently collected in the discharge container located at the base of the mill. To meet specific industry requirements, the system can be custom-manufactured with stainless steel components compliant with food-grade standards.
