LB 220 Laboratory Type Ball and Rod Mill

LB 220 Laboratory Type Ball and Rod Mill Features

Designed for R&D studies and quality control processes conducted in laboratory environments, the LB 220 is a versatile unit capable of both wet and dry grinding. The unit adapts to ball or rod milling principles depending on the material structure, providing results across a wide spectrum ranging from soft-textured materials to very hard minerals.

Technical Specifications

Model	LB 220

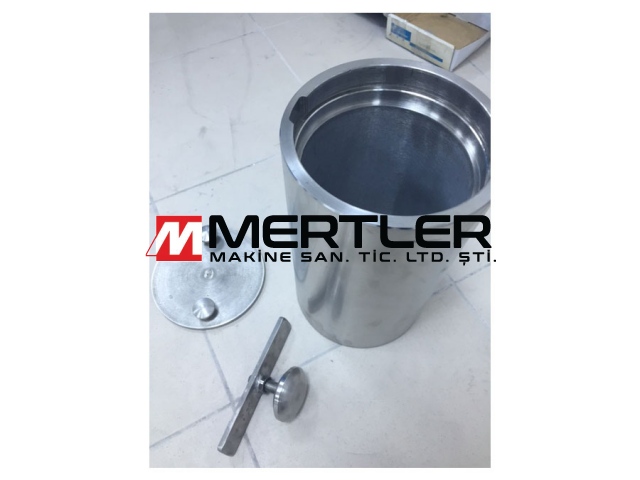

Mill Cylinders	2 Units, 3-Liter Capacity Each
Motor Power	1.5 HP - 900 RPM - 380V
Rotation Speed	0 - 300 RPM (Adjustable via Frequency Inverter)
Speed Control Unit	Single-Phase (220V) Input - Three-Phase (380V) Output
Body Material Options	CrNi Stainless Steel or Ceramic-Based Materials

LB 220 Laboratory Type Ball and Rod Mill

Versatile Grinding Capabilities: The ball mill is a versatile machine with adjustable rotation speeds, suitable for both wet and dry grinding processes. It is engineered for the processing and grinding of a wide range of materials classified as soft, hard, and very hard. Equipped with an intuitive touch panel, users can precisely program parameters such as rotation speed (RPM) and operation duration, ensuring the achievement of the desired micron-level fineness.

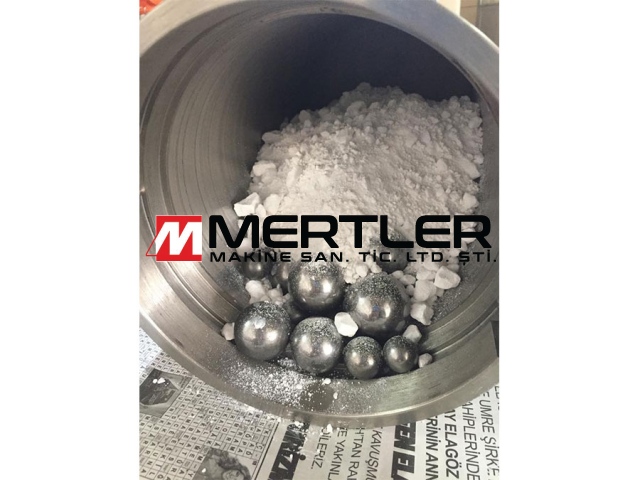

Grinding Media and Mechanical System: The system includes 20 kg of either CrNi (Chrome-Nickel) or ceramic-based grinding media. The mechanical assembly consists of parallel moving rollers with a diameter of 80 mm and a length of 800 mm. Customized manufacturing options are available based on specific client requirements and technical demands.
