| Model | SMD 1000 |
| Footprint / Required Area | 4m x 5m = 20 Square Meters |
| System Height | h = 4600 mm |
| Total Motor Power (Feeder & Filler) | 1.5 kW |

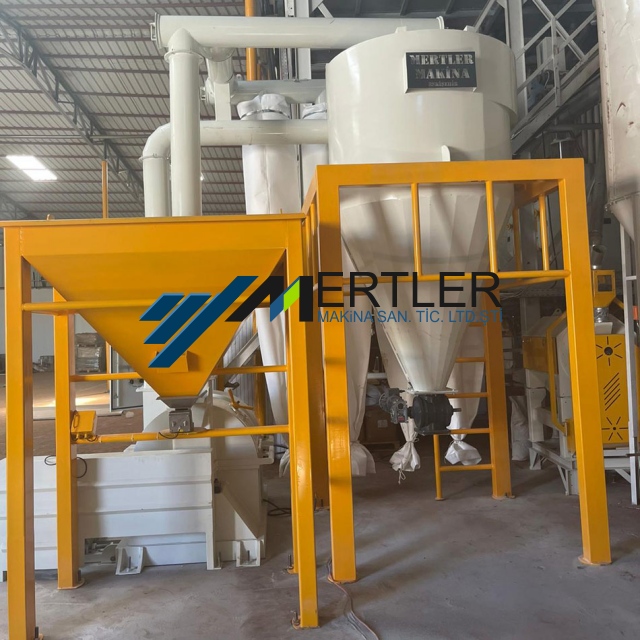

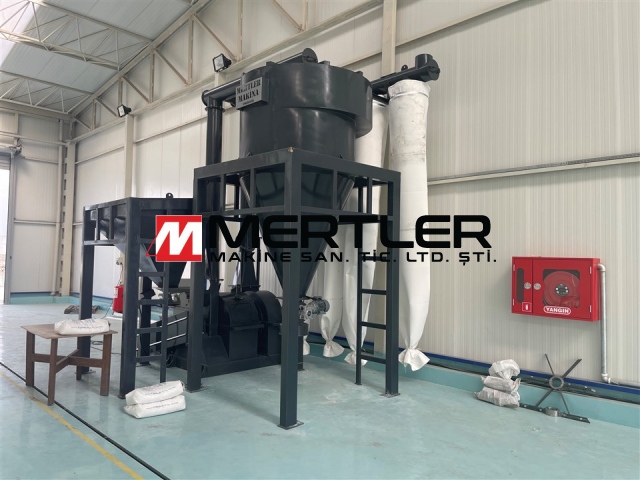

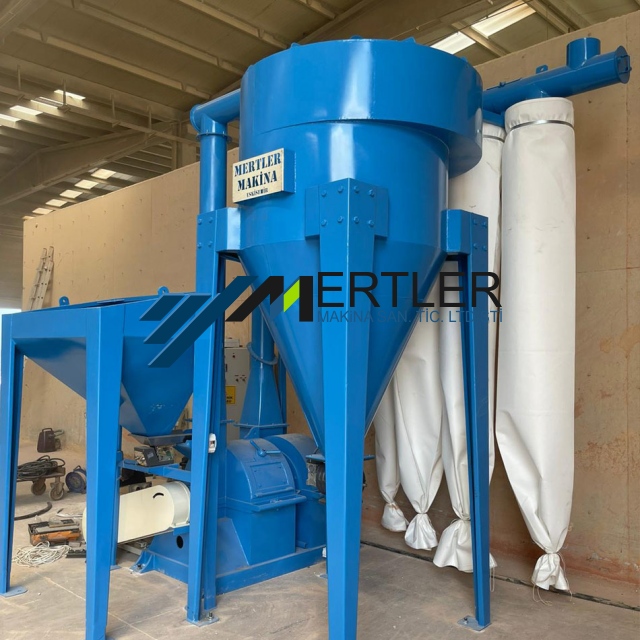

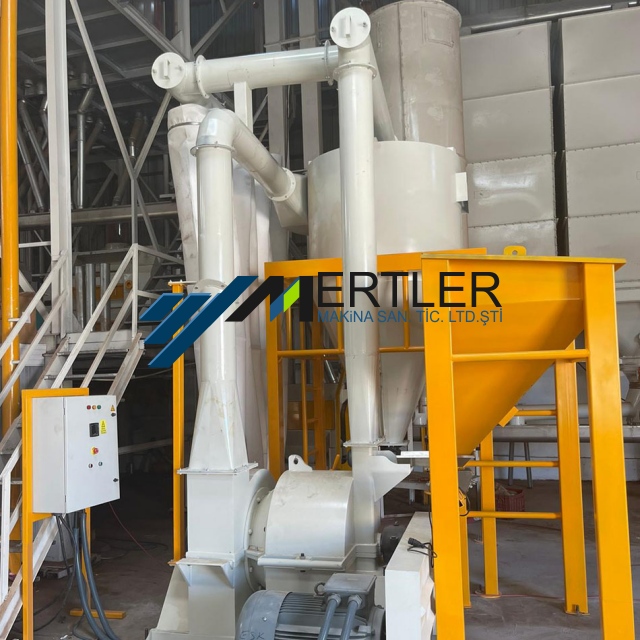

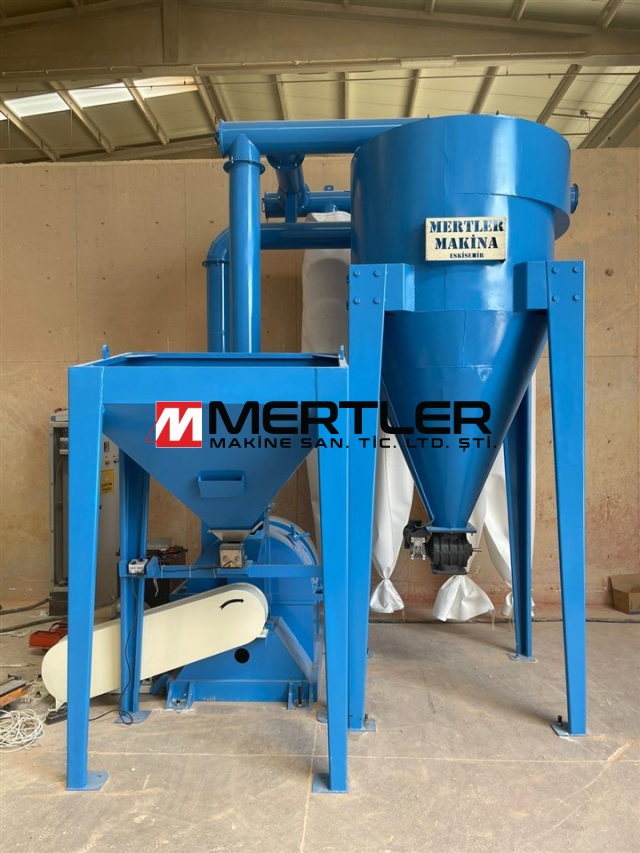

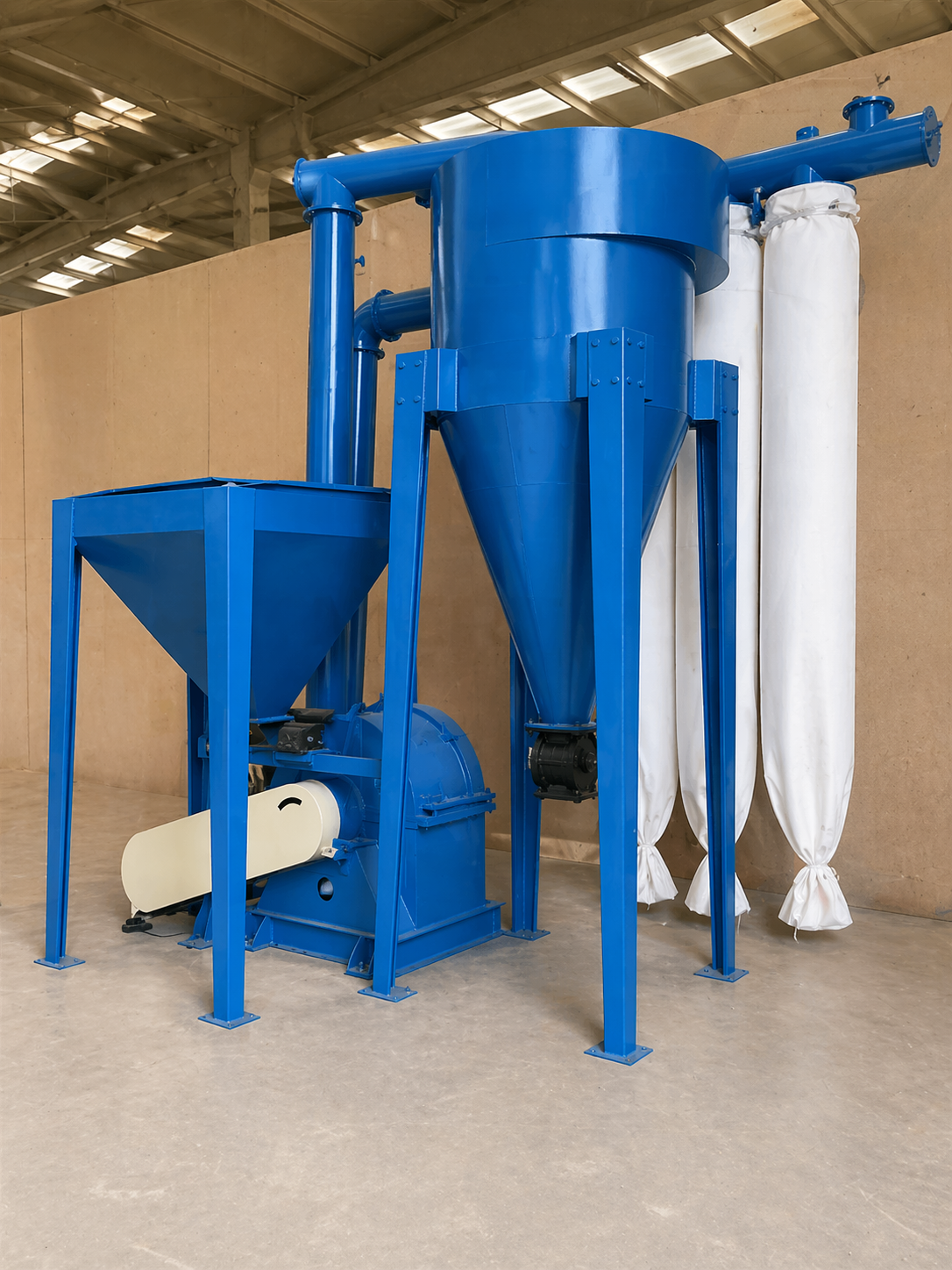

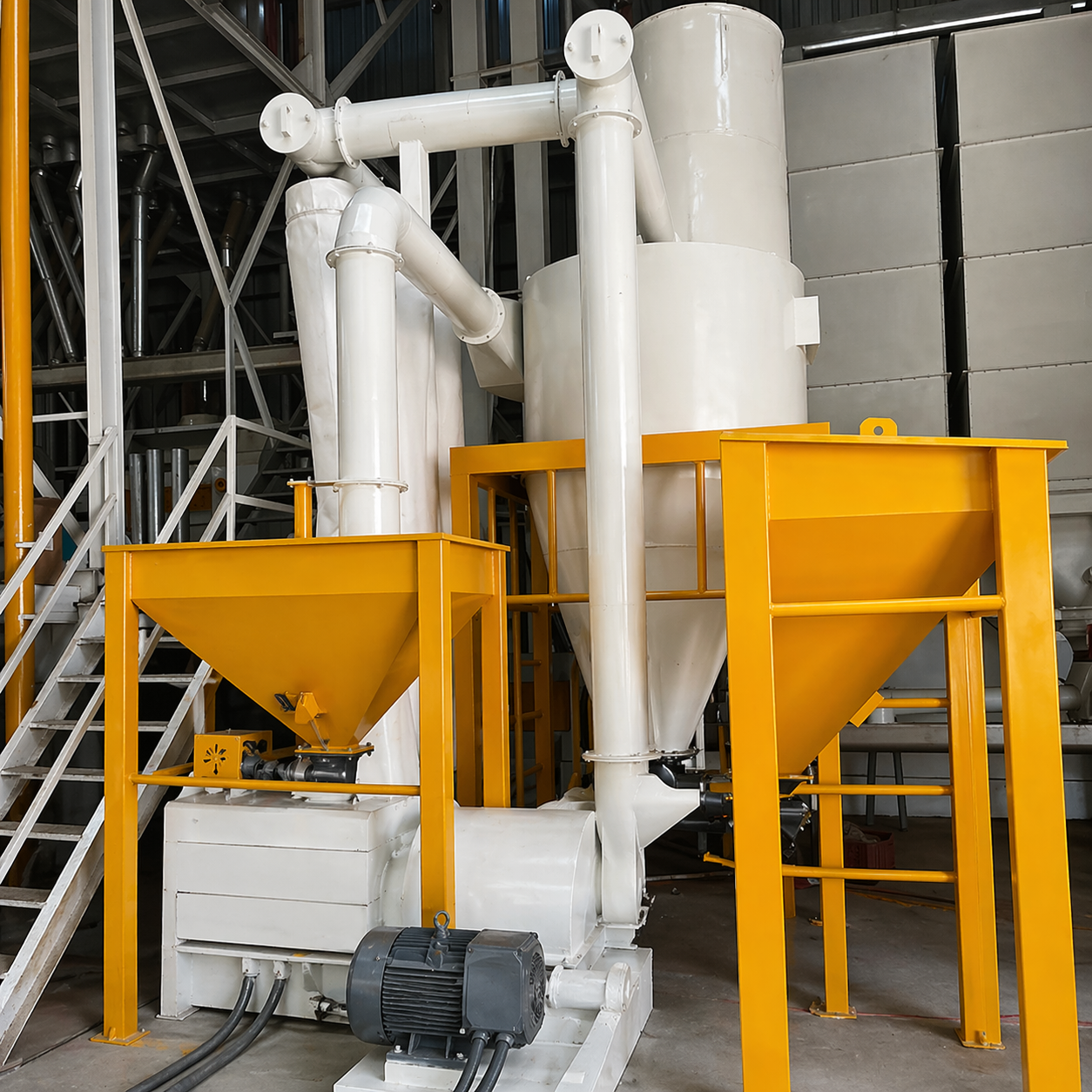

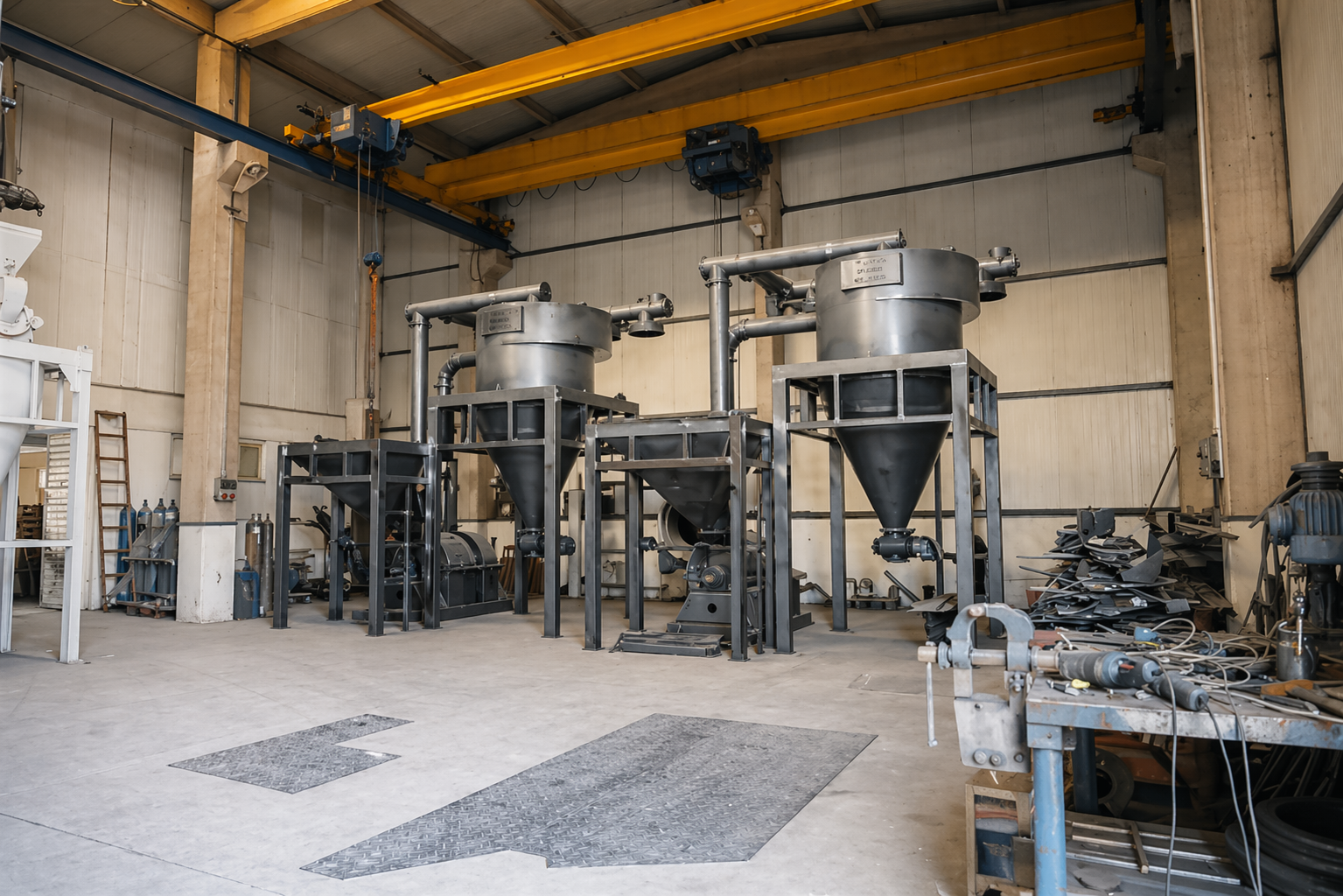

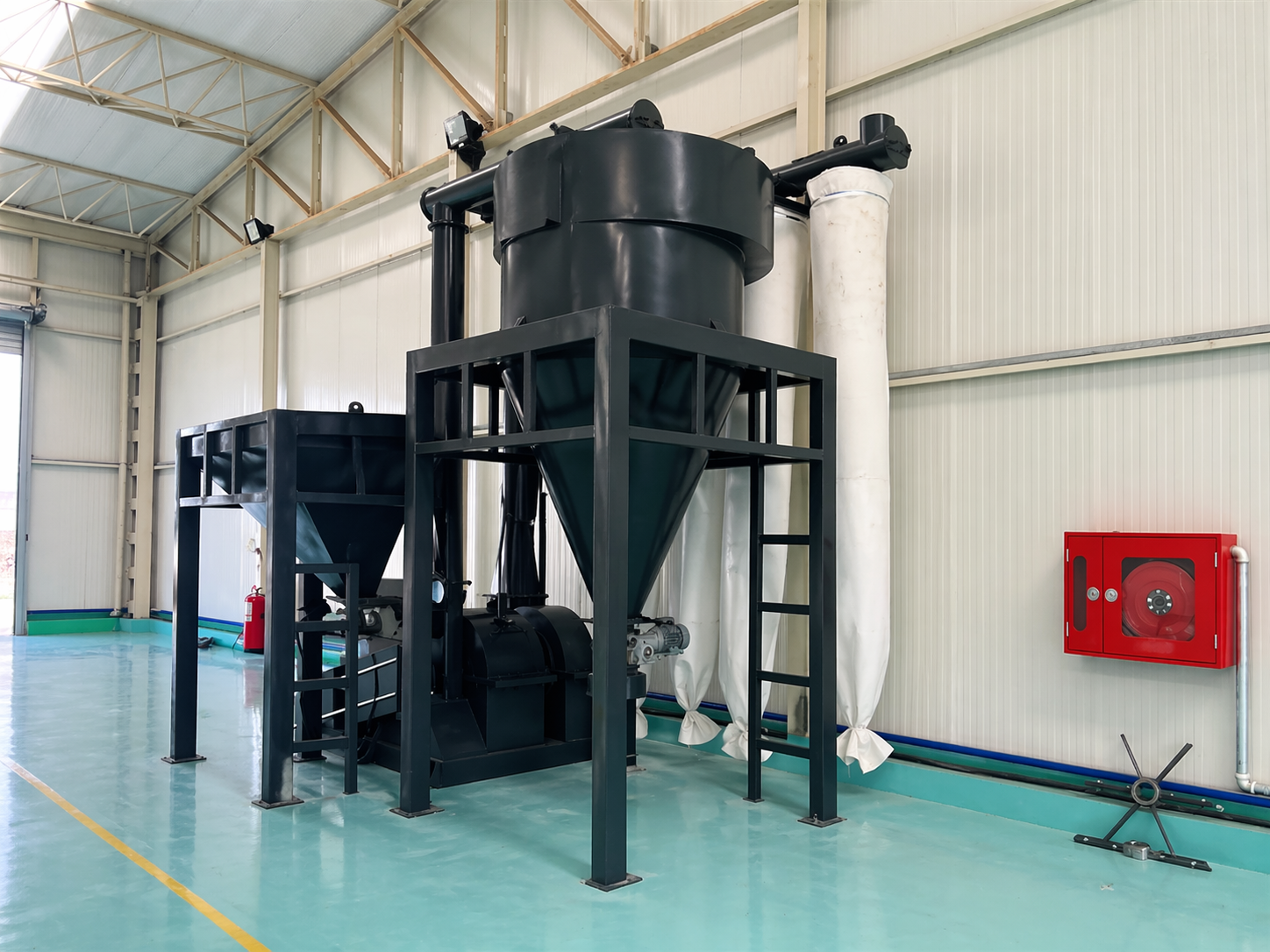

This unit is an integrated system that performs grinding and classification (separation) simultaneously. The raw material loaded into the hopper is fed into the mill at a stable rate via an electromagnetic feeder. Once the ground material reaches the target micron level in the separator, it is conveyed to the cyclones and filters. The most prominent feature of this mill is the ability to obtain final products in various micron sizes through easily exchangeable components. It is a preferred solution in numerous production facilities due to its ability to yield the final product directly (e.g., 0-20 μm, 0-50 μm, 0-100 μm, 0-250 μm, etc.).
Unit Components
The SMD 1000 unit consists of the following high-performance equipment:

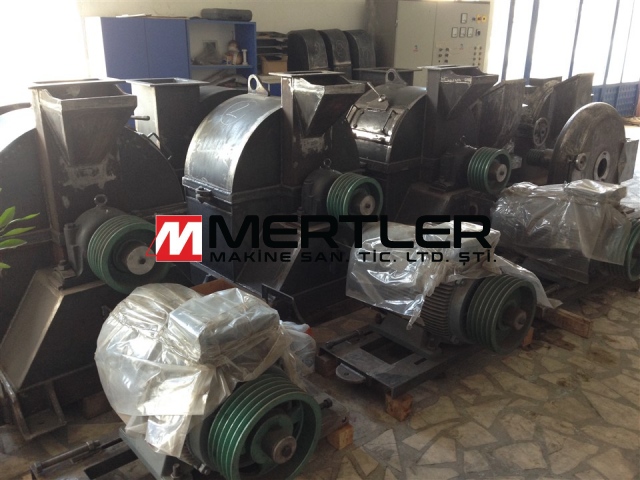

Hammer Mill & Separator Fan Group: The primary grinding assembly integrated with a precision classification fan.
Air and Micronized Product Circulation Piping & Air Filtration Group: High-efficiency conduits and filters for product transport and dust control.
Raw Material Hopper (Approx. 500 kg) & Electromagnetic Feeder: Ensuring a synchronized and consistent material flow into the system.
Micronized Product Cyclone: Facilitating Big-Bag or woven sack filling via the rotary valve (airlock) located beneath the cyclone.
Micronized Product Filler (Rotary Valve/Airlock): Specialized discharge unit for controlled material extraction.
