SMD 1100 Hammer Mill Micronizing Unit

Material is fed to the mill in a controlled and stable manner through an electromagnetic feeder and directed to the separator after the grinding process. The product that reaches the desired micron size in the separator is finalized through cyclone and filtration systems. One of the key advantages of this system is that the separator speed can be adjusted independently from the mill, allowing the production of different particle sizes such as 0–20, 0–50, 0–100, and 0–250 microns. Thanks to its ability to deliver the final product directly to the production line, it is widely preferred as an efficient grinding solution in many industrial facilities.

Applications

It is used as a micronizing mill in the mining, chemical, soil, fertilizer, recycling, glass, and food industries. Stainless steel production is available in compliance with food industry standards.

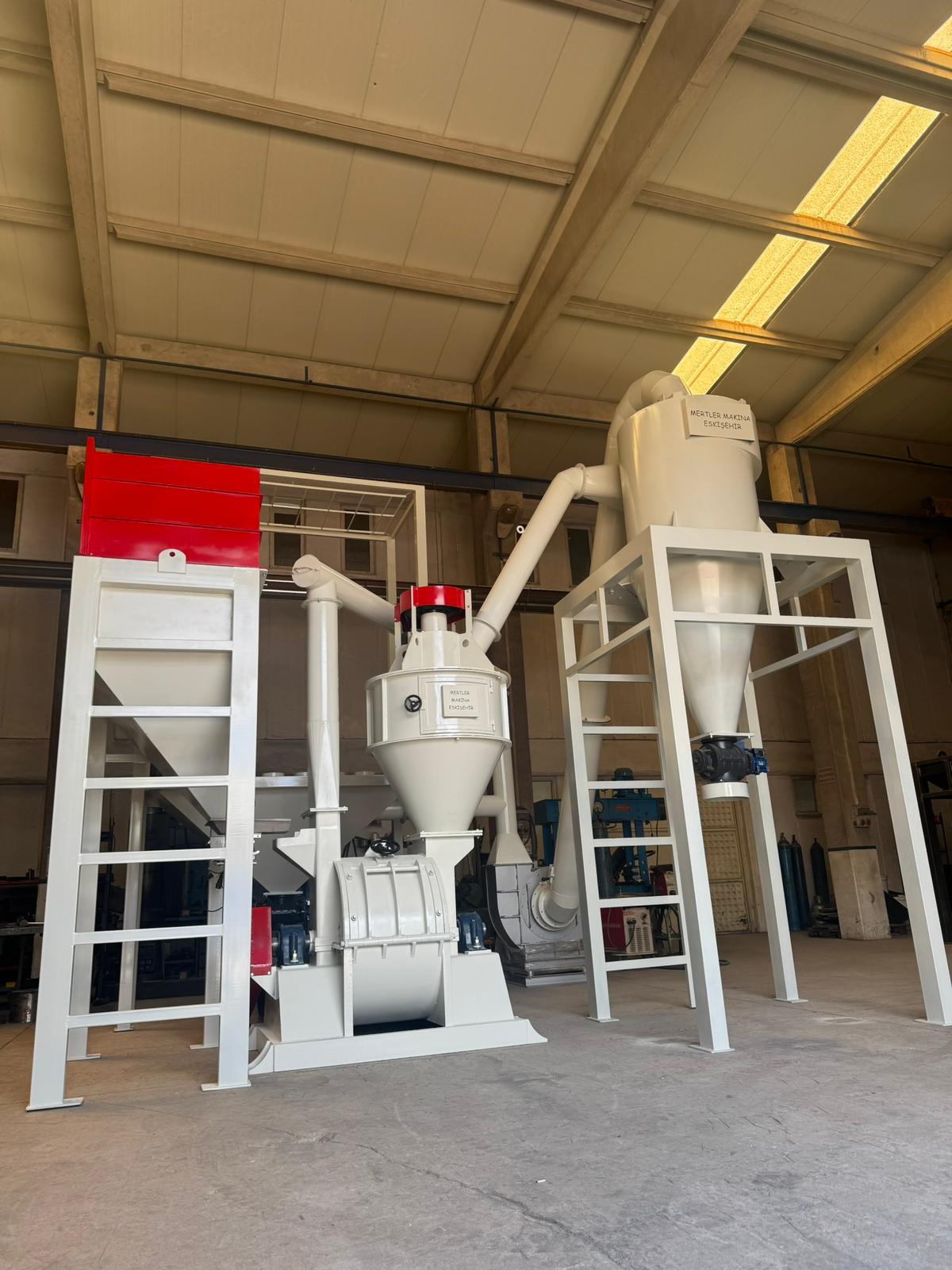

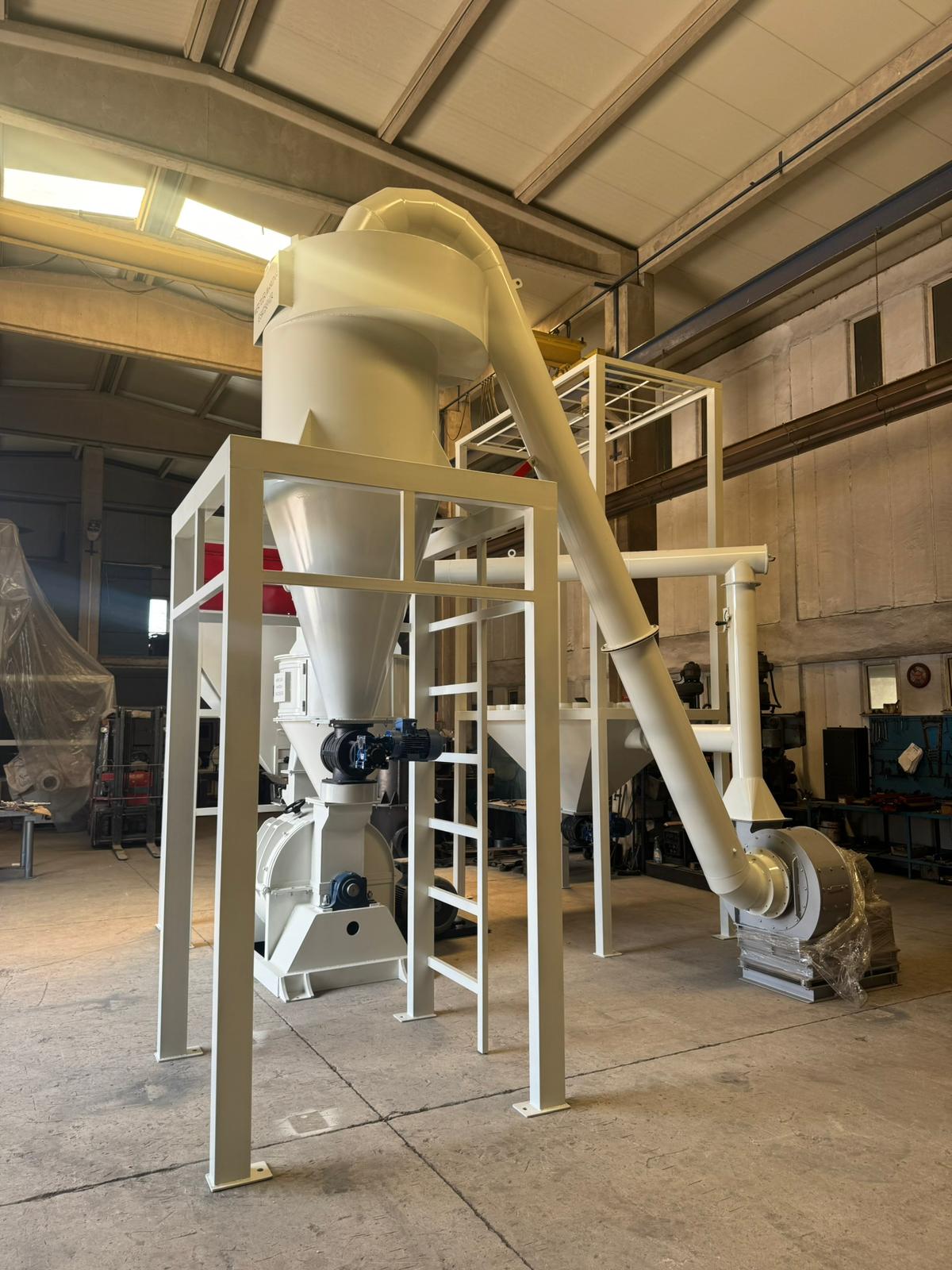

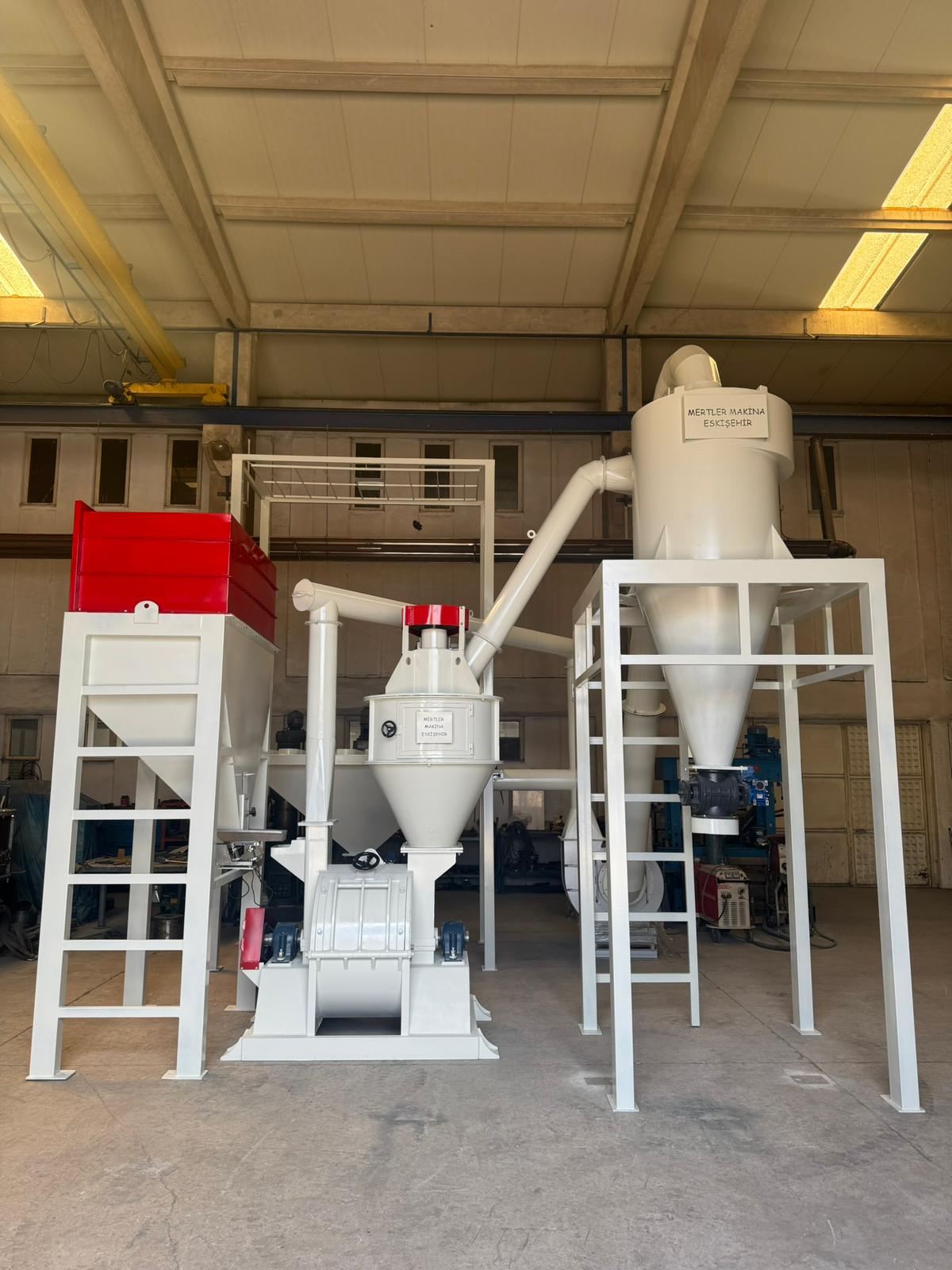

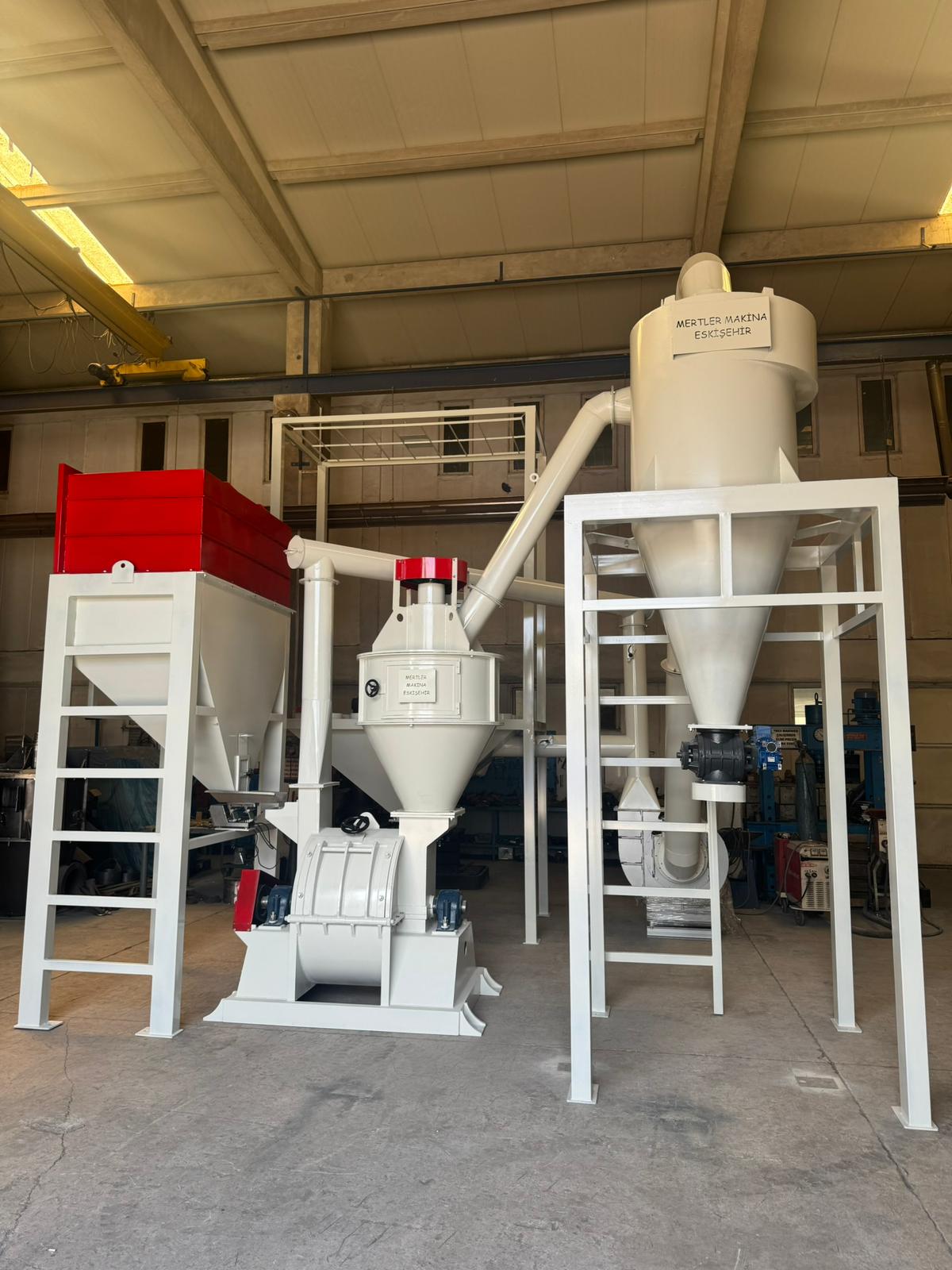

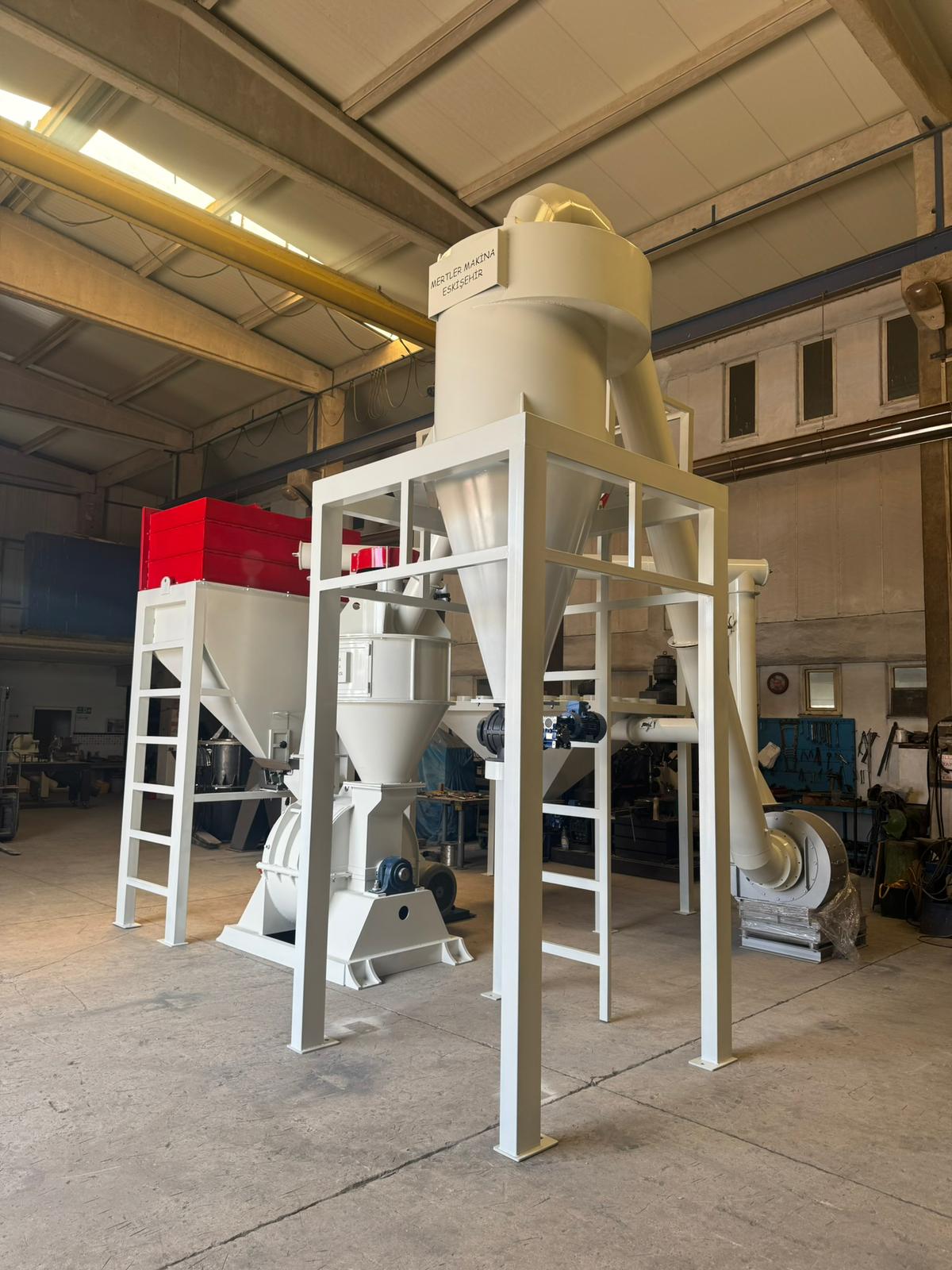

Equipment Included in the Grinding Unit

• Hammer Mill

• Separator

• Fan Unit

• Bag Filter

• Micronized Product Circulation Pipes and Air Filtration System

• Raw Material Hopper (approx. 500 kg) with Electromagnetic Feeder

• Micronized Product Cyclone (Big-Bag or jute sack filling can be carried out through the airlock valve located beneath the cyclone.)

• Micronized Product Filling Unit (Airlock Valve)

Installation Area

5 m × 5.5 m = 27.5 m²
Height: 4,600 mm

Technical Specifications

• Main Mill Motor Power: 55–75 kW / 1,400 rpm

• Fan Motor Power: 30 kW

• Total Power of Filling Unit and Feeder Motors: 1.5 kW

SMD 1100 Specifications

• Feed Size: 0–30 mm

• Number of Hammers: 20 pcs

• Motor Power: 55–75 kW

• Capacity at -20 Micron: 500 kg/h

• Capacity at -50 Micron: 700 kg/h

• Capacity at -100 Micron: 1.5 t/h

• Capacity at -250 Micron: 2 t/h
